Notch 1/2" Rigging Block

Notch

Available Inventory: 2

+ -

Item Details

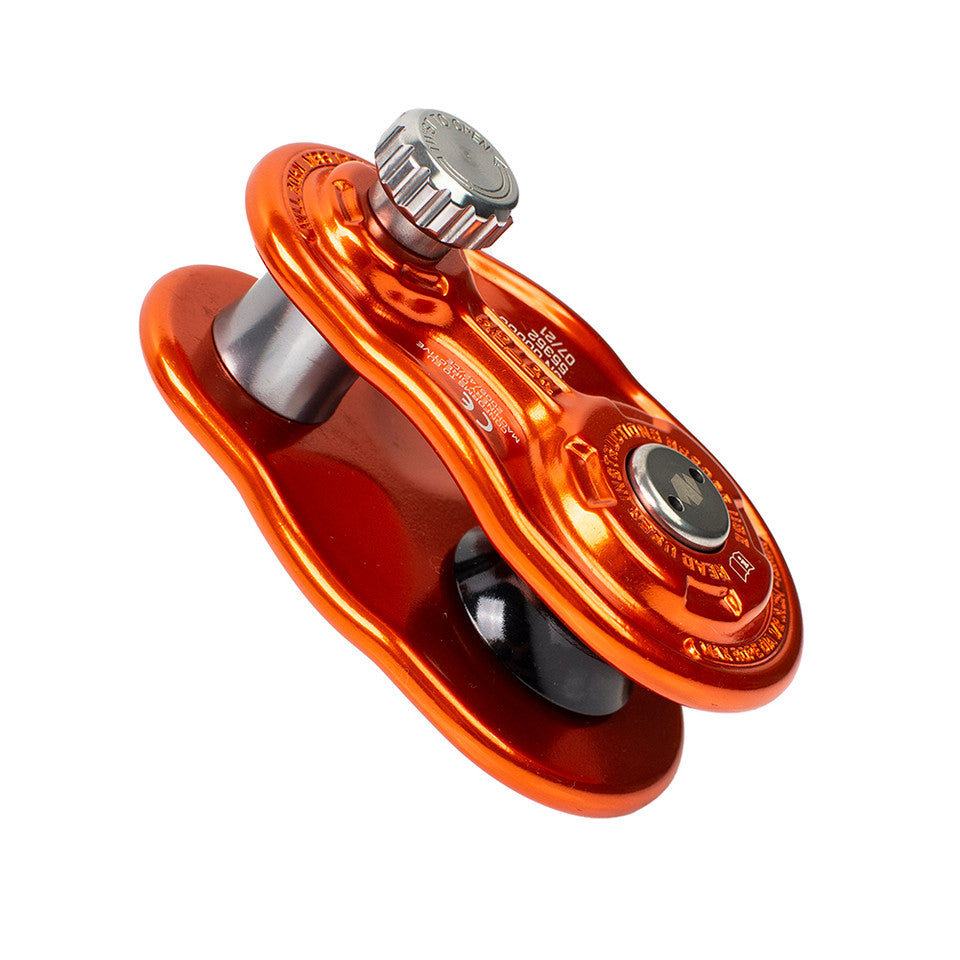

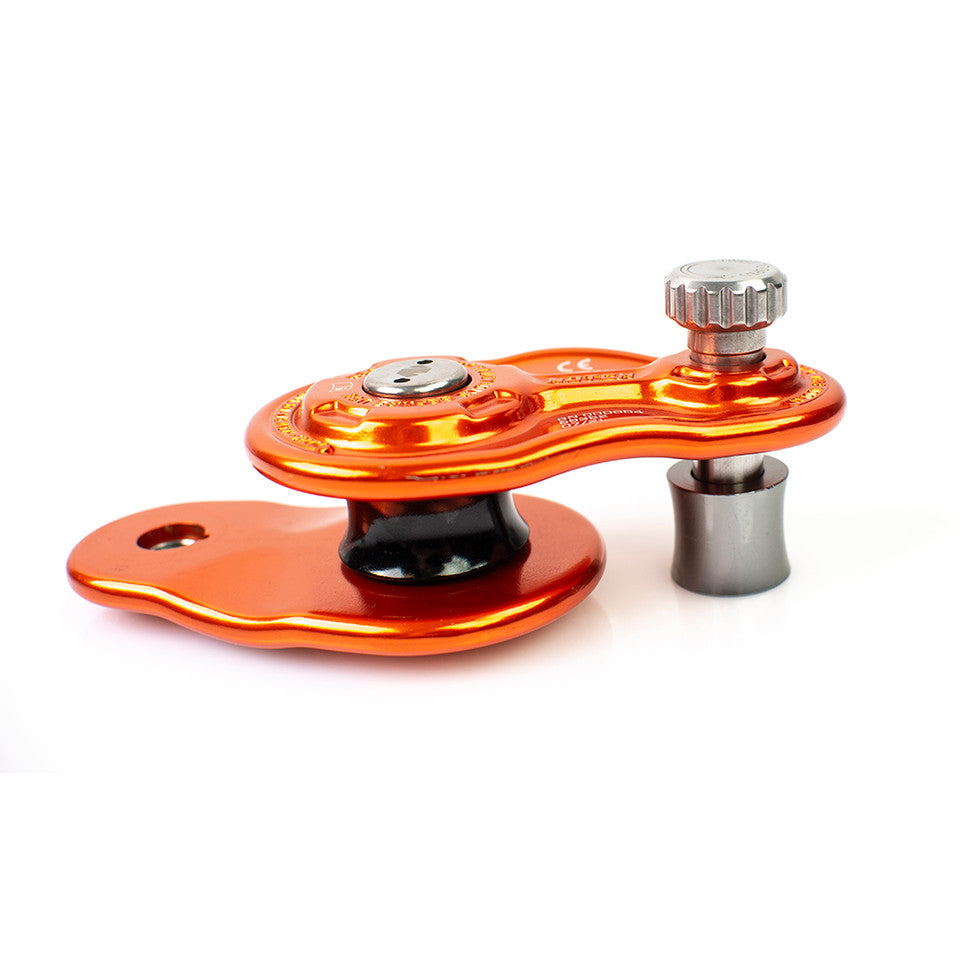

The Notch 1/2" Rigging Block is a small sized lightweight arborist block accepts working lines up to 1/2” (13mm) diameter.

DETAILS

Features & Benefits:

  • 20 kN WLL / 100 kN MBS
  • Hot forged aluminum side plates with rope friendly rounded cheeks
  • Precision CNC machined aluminum sheaves with wide bend radii
  • Low profile, secure, easy to-open captive screw pin lock
  • High wall, full diameter, improved anchor sling protection
  • Wide, concave upper sheave accepts 5/8” anchor slings
  • Flared side-plates reduce twisting in complex rigging scenarios
  • WORKING LOAD LIMIT:  (WLL) 20 kN (4,496 lbs.)
  • MBS:  100 kN (22,480 lbs.)
  • MAX WORKING LINE DIAMETER:  1/2 in (13mm)
  • MAX SLING DIAMETER:  5/8 in (16mm)
  • UPPER SHEAVE DIAMETER:  .75 in (19mm)
  • LOWER SHEAVE DIAMETER: 1.5 in (38mm)
  • HEIGHT:  4.7 in (118mm)
  • WIDTH:  2.7 in (68mm)
  • WEIGHT:  1 lb. (.45kg)
  • SIDEPLATE MATERIAL: Aluminum
  • SHEAVE MATERIAL:  Aluminum
  • AXLE MATERIAL:  Stainless Steel
