PipeConx PCX 02 Series Clay to Plastic or Cast Iron

Pipe Conx

Available Inventory: 1

$28.99
Unit price per

Select

Quantity

+ -

PIPECONX Universal Pipe Connectors allow you to connect any size pipe, quickly and easily. Their time saving, fully tested design gives you professional results in minutes using only a slotted screwdriver or a 5/16″ nut driver or socket. Once installed, by tightening the stainless steel bands to 60″ lbs. torque, you are assured of a leak-proof, chemical resistant connection that is impervious to roots and unaffected by soil conditions.

Each coupling is identified by part number, size and the names of the materials they connect.

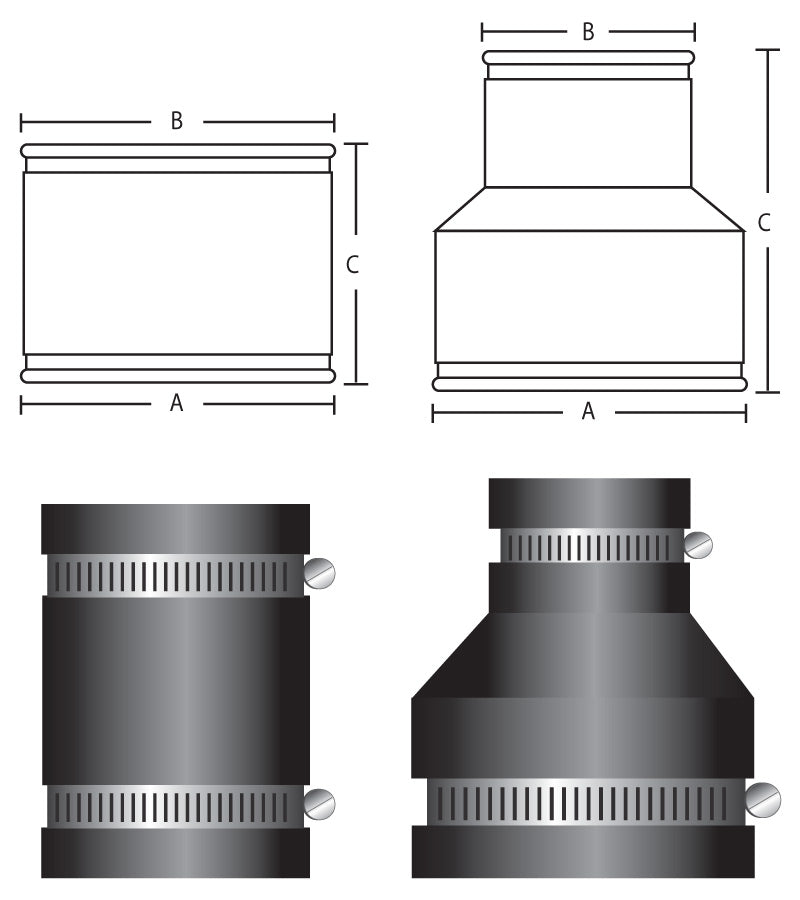

		A		B		C
Sales #	Pipe Size	IN	MM	IN	MM	IN	MM
PCX02-43	4″ x 3″	5.35	136	3.45	88	4.00	102
PCX02-44	4″ x 4″	5.35	136	4.45	113	3.875	98
PCX02-46	4″ x 6″	5.35	136	6.45	164	6.00	152
PCX02-64	6″ x 4″	7.55	192	4.45	113	5.75	146
PCX02-66	6″ x 6″	7.55	192	6.45	164	5.70	145
PCX02-86	8″ x 6″	9.80	249	6.45	164	6.00	152
PCX02-88	8″ x 8″	9.80	249	8.60	218	6.50	165
PCX02-1010	10″ x 10″	12.10	307	10.65	271	6.625	168
PCX02-1212	12″ x 12″	14.55	370	12.65	321	8.00	203
PCX02-1515	15″ x 15″	18.00	457	15.45	392	9.00	229
PCX02-1818	18″ x 18″	21.50	546	18.90	480	10.00	254
PCX02-2121	21″ x 21″	25.50	648	23.30	566	9.00	254
PCX02-2424	24″ x 24″	29.00	737	25.00	635	9.00	229
